SELECTOR VALVES
Nominal flow rate: 50 liter/min
Max. Pressure: 315 bar, without drain line 210 bar
Voltage: 12 or 24 V DC
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 9 to NAS 1638
Nominal flow rate: 90 liter/min
Max. Pressure: 280 bar
Voltage: 12 or 24 V DC
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 18/14 – ISO 4406

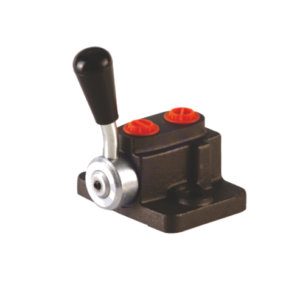

This valve is a 3-Way Hydraulic Selector Valve for Massey Ferguson Tractors. It is assembled directly on lift cover and increases the hydraulic versatility by adding 2 more facilities.
Working ports: G 3/8″
Nominal flow rate: 90 liter/min
-for Code 42, 43, 44 – max 60 l/min
Max. Pressure: 320 bar
Porting: Standart 1/2 BSP
Fluid temperature range: -10 oC … +80 oC
Material: Steel spool in cast iron body.
Weight: 2 kg
P625 is a special selector valve for Massey Ferguson tractors.
It is assembled directly on lift cover.
Working ports are G 3/8’’.
Two double acting spools for cylinders of the attachment
