HYDRAULIC PUMPS
Displacement: 0.8 cc/rev…9 cc/rev
Nominal pressure: Up to 230 bar
Max. speed: Up to 6000 rpm
Fluid temp. range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt
Filtration: 15-25 µm
Displacement: 4.5 cc/rev…28 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temp. range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt
Filtration: 25 µm
Displacement: 20 cc/rev…60 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 2500 rpm
Fluid temp. range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt
Filtration: 25 µm
Displacement: 4.5 cc/rev…28 cc/rev
Nominal pressure: Up to 250 bar
Max. speed: Up to 3500 rpm
Fluid temp. range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt
Filtration: 25 µm
Displacement: 4.5 cc/rev…19 cc/rev
Nominal pressure: Up to 200 bar
Max. speed: Up to 3000 rpm
Fluid temp. range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt
Filtration: 15-25 µm
Disp: 20 cc/rev…42.7 cc/rev
Nominal pressure: Up to 200 bar
Max. speed: Up to 3000 rpm
Fluid temp. range: -10 oC … +80 oC
Fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt
Filtration: 15-25 µm

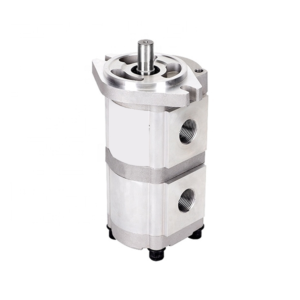

Hydraulic pumps are mechanical devices that convert mechanical power into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hidros can provide double and triple tandem pumps with different specifications upon customer request.
Pump supports (pump front bearings) are suited to drive hydraulics pumps/motor belts, chain or other transmission where heavy combined loads (axial and radial loads) take place.
