POWER PACKS
Electric motor: 1.6 kW 12 V DC
Pump: 2.1 cc/rev, 5 liter/min @ 2500 rpm
Oil tank: 6 liter plastic tank, horizontal mounting
Max pressure: 155 bar
Pressure relief valve setting: 150 bar
Electric motor: 2.2 kW 24 V
Pump: 2.1 cc/rev, 5 liter/min @ 2500 rpm
Oil tank: 8 liter cylinder tank, horizontal mounting
Max pressure: 200 bar

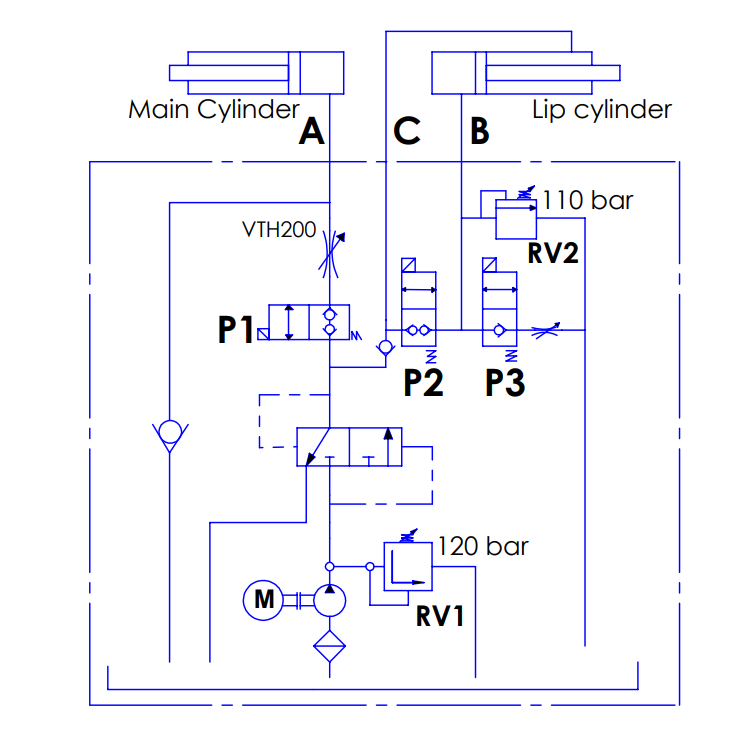

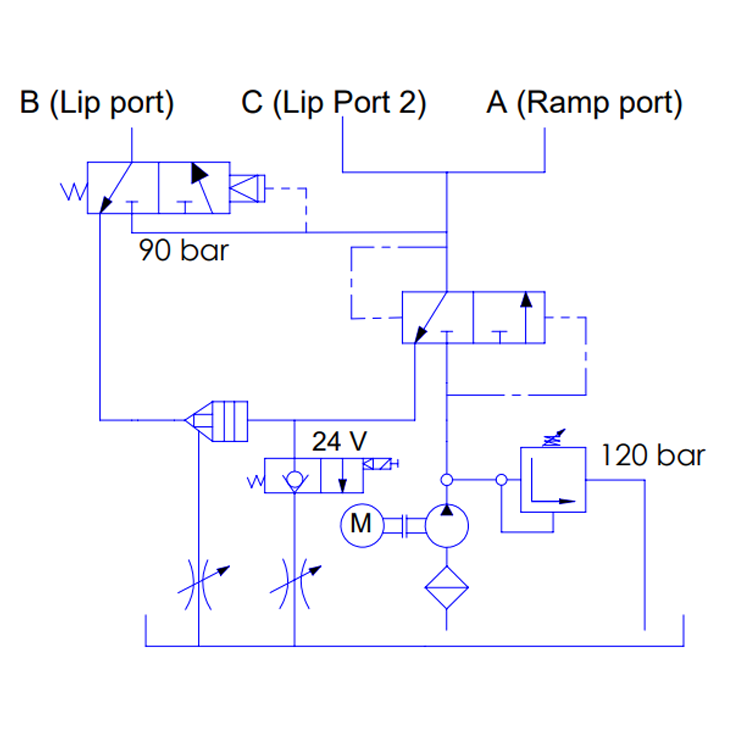

Electric motor: 1.1 kW 380 V, 2800 rpm, 50 Hz., S3 working duty
Pump: 1.8 cc/rev, 5 liter/min @ 2800 rpm
Oil tank: 8 liter plastic tank, horizontal mounting
Max pressure: 120 bar
Pressure setting of sequence valve: 90 bar
Electric motor: 1.1 kW 380 V, 2800 rpm, 50 Hz., S3 working duty
Pump: 1.8 cc/rev, 5 liter/min @ 2800 rpm
Oil tank: 6 liter plastic tank, horizontal mounting
Max pressure: 120 bar
Electric motor: 0.8 kW 12 V
Pump: 0.5 cc/rev, 1.6 liter/min @ 3500 rpm
Oil tank: 1.5 liter plastic tank, horizontal/vertical mounting
Max pressure: 220 bar
Electric motor: 2.2 kW 380 V
Pump: 4.2 cc/rev, 6 liter/min @ 1500 rpm
Oil tank: 12 liter cylinder tank, vertical mounting
Max pressure: 190 bar
Electric motor: 1.6 kW 12 V
Pump: 1.3 cc/rev, 3.2 liter/min @ 2500 rpm
Oil tank: 8 liter cylinder tank, horizontal mounting
Max pressure: 220 bar
Electric motor: 2.2 kW 24 V
Pump: 4.2 cc/rev, 6 liter/min @ 1500 rpm
Oil tank: 12 liter cylinder tank, vertical mounting
Max pressure: 190 bar
Electric motor: 1.6 kW 12 V DC
Hydraulic pump: 2.1 cc/rev
Oil tank: 4 liter plastic tank, horizontal assembly
Max. pressure: 155 bar
