NG6 and NG10 Hydraulic Blocks
Önceki
Sonraki
- NG6 (CETOP 3) or NG10 (CETOP 5) mounting surfaces
- From 60 liter/min up to 100 liter/min flow rate
- Pressure 315 bar
- Manifolds without pressure relief valve or with relief valve options
- From 1 section up to 6 sections in standard range

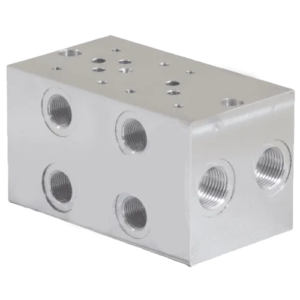

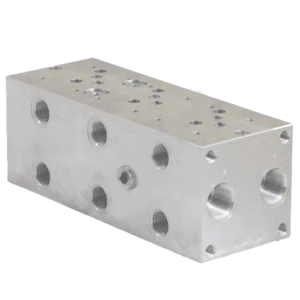

Renman provide NG6 and NG10 aluminum hydraulic blocks mainly used in hydraulic power units and various applications.
| Code | Mounting surface | Max. flow liter/min | Max. pressure bar | Type |
|---|---|---|---|---|
| HPB-NG6-P1 | NG6 (CETOP 3) | 40 | 250 | Without relief valve |
| HPB-NG6-P2 | NG6 (CETOP 3) | 40 | 250 | Without relief valve |
| HPB-NG6-P3 | NG6 (CETOP 3) | 40 | 250 | Without relief valve |
| HPB-NG6-P4 | NG6 (CETOP 3) | 40 | 250 | Without relief valve |
| HPB-NG6-P5 | NG6 (CETOP 3) | 40 | 250 | Without relief valve |
| HPB-NG6-P6 | NG6 (CETOP 3) | 40 | 250 | Without relief valve |

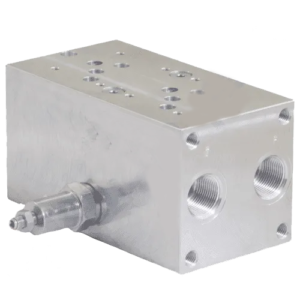

| HPB-NG6-P1-RV | NG6 (CETOP 3) | 70 | 250 | With relief valve |
| HPB-NG6-P2-RV | NG6 (CETOP 3) | 70 | 250 | With relief valve |
| HPB-NG6-P3-RV | NG6 (CETOP 3) | 70 | 250 | With relief valve |
| HPB-NG6-P4-RV | NG6 (CETOP 3) | 70 | 250 | With relief valve |
| HPB-NG6-P5-RV | NG6 (CETOP 3) | 70 | 250 | With relief valve |
| HPB-NG6-P6-RV | NG6 (CETOP 3) | 70 | 250 | With relief valve |
| Hydraulic blocks are parallel type, working ports (A & B) are on side Please contact us for special requests | ||||
