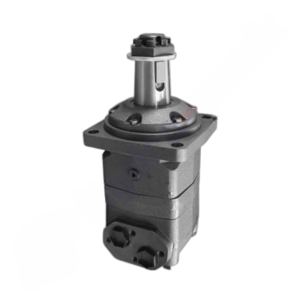

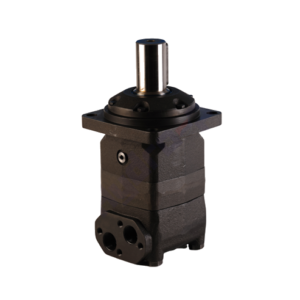

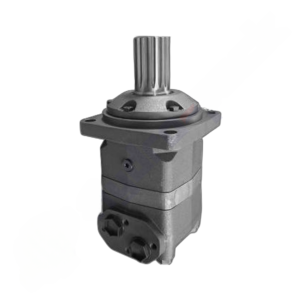

MV Series Hydraulic Motors

MV Series: MV315C,MV400C,MV500C,MC630V,MV800C

Max. displacement: Up to 801.8 cc/rev
Max. torque: 188 daNm (Cont. operation), 211 daNm (Intermittent operation)
Max. output power: 64 kW
Max. pressure drop: 200 bar (Cont. operation), 240 bar (Intermittent operation)
Max. oil flow: 240 liter/min
Min. speed: 5 rpm

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MV series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

CodeDisplacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MV315C314.551092200160210
MV400C400.9500118200200210
MV500C499.6400146200200210
MV630C629.1320166180200210
MV800C801.8250188160200210
* values are for continuous operation
Motors have 50 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
