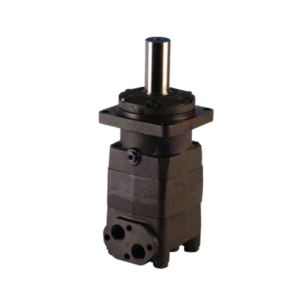

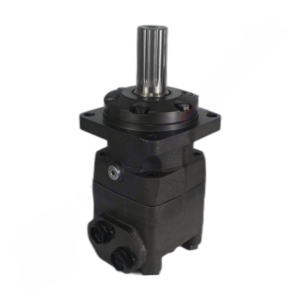

MT Series Hydraulic Motors

MT Series: MT160C,MT200C,MT250C,MT315C,MT400C,MT500C,MT630C,MT725C

Max. displacement: Up to 724.3 cc/rev
Max. torque: 130 daNm (Cont. operation), 148 daNm (Intermittent operation)
Max. output power: 40 kW
Max. pressure drop: 200 bar (Cont. operation), 240 bar (Intermittent operation)
Max. oil flow: 150 liter/min
Min. speed: 5 rpm

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MT series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

CodeDisplacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MT160C161.162247200100210
MT200C201.462059200125210
MT250C251.849673200125210
MT315C326.338295200125210
MT400C410.9304108180125210
MT500C523.6238122160125210
MT630C631.2197130140125210
MT725C724.3172127120125210
* values are for continuous operation
Motors have 40 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
