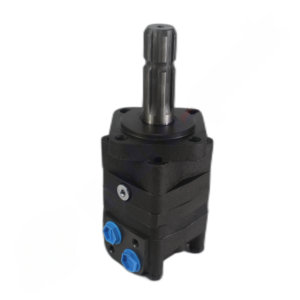

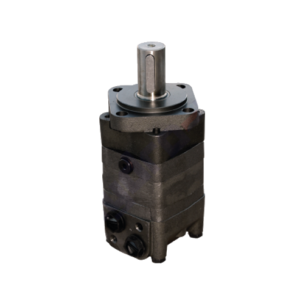

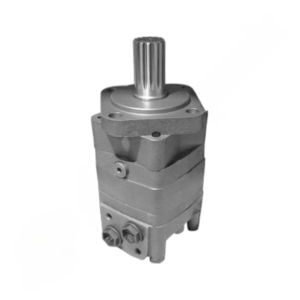

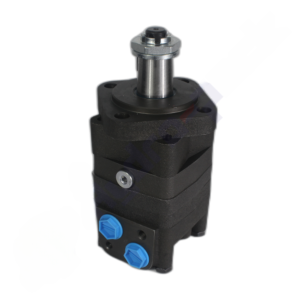

MS Series Hydraulic Motors

MS Series: MS80C,MS100C,MS125C,MS160C,MS200C,MS250C,MS315C,MS400C,MS475C,MS525C,MS565C

Max. displacement: Up to 564.9 cc/rev
Max. torque: 85 daNm (Cont. operation), 99 daNm (Intermittent operation)
Max. output power: 23 kW
Max. pressure drop: 210 bar (Cont. operation), 275 bar (Intermittent operation)
Max. oil flow: 90 liter/min
Min. speed: 5 rpm

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MS series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics.

CodeDisplacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MS80C80.58102421065230
MS100C10075030.521075230
MS125C125.760037.521075230
MS160C159.74704921075230
MS200C2003756121075230
MS250C2503007220075230
MS315C314.924082.520075230
MS400C39719086.516075230
MS475C474.61608513075230
MS525C522.71458511575230
MS565C564.91308510575230
* values are for continuous operation
Motors have 32 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
