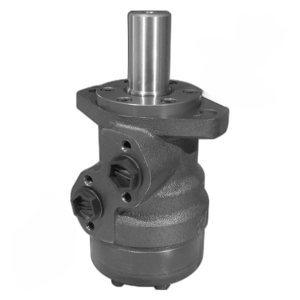

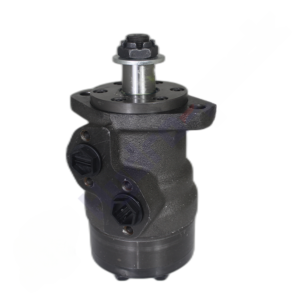

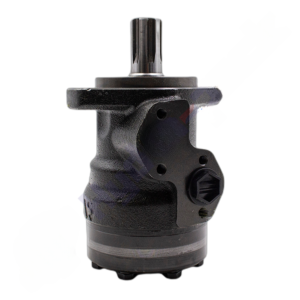

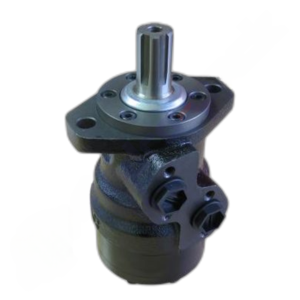

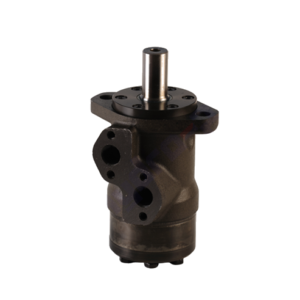

MR Series Hydraulic Motors

MR Series: MR50C,MR80C,MR100C,MR125C,MR160C,MR200C,MR250C,MR315C,MR400C

Max. displacement: Up to 397 cc/rev
Max. torque: 61 daNm (Cont. operation), 69 daNm (Intermittent operation)
Max. output power: 15 kW
Max. pressure drop: 175 bar (Cont. operation), 200 bar (Intermittent operation)
Max. oil flow: 75 liter/min
Min. speed: 10 rpm

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. In MR series, the rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures.

CodeDisplacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MR50C51.57751014040175
MR80C80.37502017560175
MR100C99.86002417560175
MR125C125.74753017560175
MR160C159.63753917560175
MR200C199.83004517560175
MR250C250.12405417560175
MR315C315.71905513560175
MR400C3971506111060175
* values are for continuous operation
Motors have 25 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
