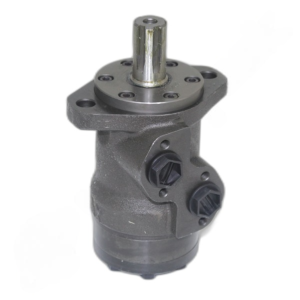

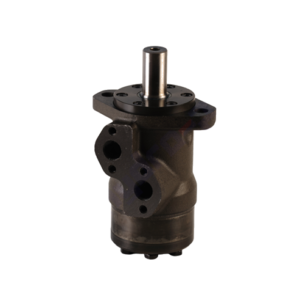

MP Series Hydraulic Motors

MPSeries: MP25C,MP32C,MP40C,MP50C,MP80C,MP100C,MP125C,MP160C,MP200C,MP250C,MP315C,MP400C,MP500C,MP630C

Max. displacement: Up to 623.6 cc/rev
Max. torque: 50 daNm (Cont. operation), 64 daNm (Intermittent operation)
Max. output power: 12.8 kW
Max. pressure drop: 140 bar (Cont. operation), 175 bar (Intermittent operation)
Max. oil flow: 75 liter/min
Min. speed: 10 rpm

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MP Series have compact design. The rollerless gear rim makes these types suitable for long operating periods at moderate pressures or short operating periods at high pressures. Different shaft, flange and port options are available.

CodeDisplacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MP25C28.414083.310040175
MP32C34.514504.310050175
MP40C40.514806.212060175
MP50C49.512109.414060175
MP80C79.275515.114060175
MP100C9960519.314060175
MP125C123.848623.714060175
MP160C158.437831.314060175
MP200C19830336.614060175
MP250C247.52423811060175
MP315C316.8190389060175
MP400C396150367060175
MP500C495120396060140
MP630C623.695445560140
* values are for continuous operation
Motors have 25 mm. straight shaft with parallel key as standard
