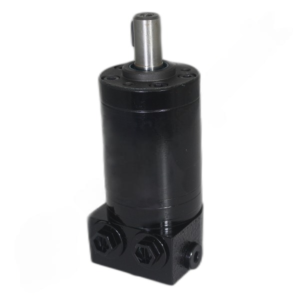

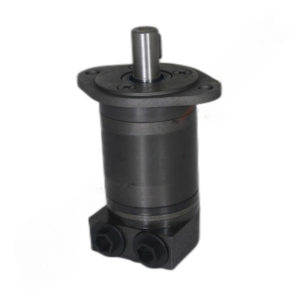

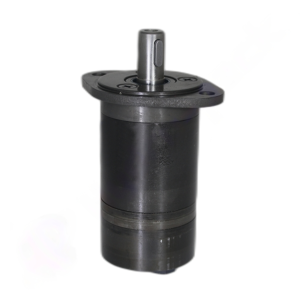

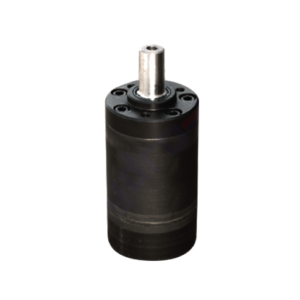

MM Series Hydraulic Motors

MM Series: MM8C,MM12.5C,MM32C,MM40C,MM50C

Max. displacement: Up to 50 cc/rev
Max. torque: 4.5 daNm (Cont. operation), 5.8 daNm (Intermittent operation)
Max. output power: 3.2 kW
Max. pressure drop: 105 bar (Cont. operation), 140 bar (Intermittent operation)
Max. oil flow: 25 liter/min
Min. speed: 20 rpm

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MM Series have compact design. The rollerless gear rim makes these types suitable for long operating periods at moderate pressures or short operating periods at high pressures. Different shaft, flange and port options are available.

CodeDisplacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MM8C8.219501.110016140
MM12.5C12.515501.610020140
MM20C19.910002.510020140
MM32C31.6630410020140
MM40C39.85004.59020140
MM50C504004.67020140
* values are for continuous operation
Motors have 16 mm. straight shaft with parallel key as standard
