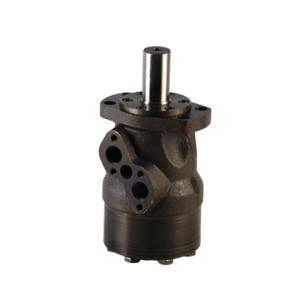

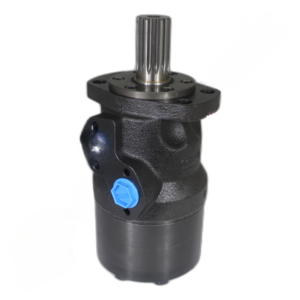

MH Series Hydraulic Motors

MH Series: MH200C,MH250C,MH315C,MH400C,MH500C

Max. displacement: Up to 502.4 cc/rev
Max. torque: 84 daNm (Cont. operation), 104 daNm (Intermittent operation)
Max. output power: 18.5 kW
Max. pressure drop: 175 bar (Cont. operation), 200 bar (Intermittent operation)
Max. oil flow: 90 liter/min
Min. speed: 5 rpm

Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.

Hydraulic motors provide the force and supply the motion to move an external load. Hidros provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. In MH series, the rollers in the gear rim reduce local stress, spread the tooth load over their projected area and reduce the tangential reaction forces on the inner gear reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures.

CodeDisplacement
cc/rev
Max. speed*
rpm
Max. torque*
daNm
Max. pressure drop*
bar
Max. oil flow*
liter/min
Max. inlet pressure*
bar
MH200C201.33705117575200
MH250C2522956117575200
MH315C314.92357417575200
MH400C396.81858415575200
MH500C502.41508212575200
* values are for continuous operation
Motors have 32 mm. straight shaft with parallel key as standard
Please check technical catalogue for dimensions and other options
